Ultrasonic sensors |

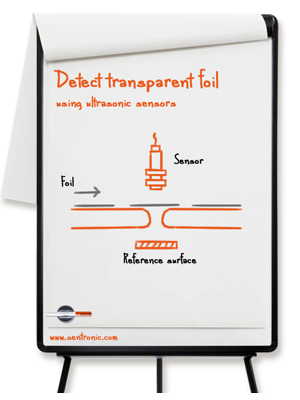

for transparent and odd-shaped objects |
|
| |
| |
|
|
| Ultrasonic sensors – for transparent and irregularly shaped objects |
| |
| Ultrasonic sensors enable contactless detection of all types of objects in harsh industrial environments, regardless of their color, shape, or state of aggregation. |
| |
 |
|
| |
| Precise object detection under all conditions – ultrasonic sensors for industrial applications |
Ultrasonic sensors offer a powerful and versatile solution for non-contact object detection in demanding industrial environments. Thanks to their high precision and reliability, they detect objects regardless of color, shape, or material condition—even transparent, irregularly shaped, or very small objects with a thickness of only 1 mm are reliably detected.
The technology is based on the principle of sound transit time measurement: a short ultrasonic pulse is emitted and the echo reflected by the object is detected by the sensor. The time measured until the echo arrives allows the distance to be determined precisely. Thanks to high sound frequencies of 70 to 500 kHz, the sensors achieve extremely fast response times of less than 50 ms – and even as low as 1.5 ms in certain models.
These sensors really shine in harsh environments. Series with E2 and ECOLAB certification and high electromagnetic compatibility guarantee reliable operation even under tough conditions. This makes ultrasonic sensors the perfect choice for precise and robust object detection in a wide range of industrial applications. |
|
| The advantages of inline pressure sensors |
| |
| |
 |
|
 |
|
 |
|
| |
|
|
| Easy installation, quick integration |
Robust and handy |
Communicative with IO-Link |
| |
|
|
| Thanks to the modern push-in fluid connection, installing the InLine sensor has never been easier. Simply cut the hose, insert the sensor, and the system is immediately ready for operation. This simple installation method ensures effortless integration into existing pneumatic systems, reduces downtime, and increases efficiency. |
The inline analog pressure transmitter features a compact design and high robustness. Thanks to a durable PBT/PC plastic housing and protection class up to IP68, it is ideal for use in demanding environments. |
Various parameters can be set via IO-Link, such as: switching/reset points, normally open/normally closed, hysteresis/window mode, switch-on/switch-off delay.
Thanks to our free programming service, we can also send you the sensors fully programmed! |
|
| |
|
| |
| |
|
|
„Where conventional sensors reach their limits, the strength of ultrasonic technology begins!“
Fabian Hauser, Sales Engineer at Sentronic |
|
|
| |
| |
| What can we do for you? |
| |
|
|
|
 |
| |
| Live Support |
| |
about this product directly in your browser using LiveCall.
No installation required, directly in your browser! |
|
|
|
|
|
 |
| |
| Customizations |
| |
Sometimes the requirements for a product are so high that specific customization is necessary.
We're here to help! |
| |
|
|
|
|
|
 |
| |
| Testing devices |
| |
| Not sure if it will work? Test our products on your application in advance if necessary. |
|
|
|
|
|
 |
| |
| Programming |
| |
Many modern devices are programmable nowadays. Just let us know the parameters you want when you place your order, and we'll take care of the rest for you.
Free of charge! |
|
| |
|
| |
| Applikationen, Lösungen und Ideen |
| |
 |
|
 |
|
 |
|
| |
| The next steps |
| |
| |
 |
|
 |
|
 |
| To the different models |
I have questions |
I want to have a LiveCall |
| Here you will find the various types, models, and designs in this product group. |
Here you will find our various contact options.
We look forward to hearing from you :-)
|
We provide support and advice LIVE here on our website, without installation or login. |
|
| |
| |
|
|
|
